Key Facts
| Product Name | RS7 ClearVision Security Shutter |
|---|---|
| Also Known As | Clear roller shutter, clear roller door, polycarbonate roller shutter, see-through roller shutter, ClearVision shutter |
| Brand | The Australian Trellis Door Co (ATDC) |
| Master Licence | 408031732 (Master Security Licence) |
| Curtain Material | Clear polycarbonate slats (100mm tall, 87mm view coverage) interlocked with aluminium joining slats (30mm) |
| Max Width (motorised) | 5,500mm (5.5m) in one section |
| Max Width (manual) | 3,000mm (3.0m), limited to 10m² |
| Unlimited Width | Achievable using fixed or removable mullions |
| Installation Types | 1. Bracket installation (wall or ceiling support) 2. Pelmet box installation (concealed, below ceiling) |
| Operation | Manual (counterbalance helical springs) or motorised (240V electric) |
| Motor Activation | Standard key switch; options: push button, remote control, battery backup (UPS) |
| Finish | Clear anodised aluminium (standard) or powder coated to Dulux Powder Coat Colour Range |
| Warranty | 12 months on motors and aluminium slats (subject to care guidelines) |
| Delivery | Australia-wide: Sydney, Melbourne, Brisbane, Adelaide, Perth, Canberra, Darwin, Hobart and more |
| Last Reviewed | May 2026 by ATDC Technical Team |
What Is the RS7 ClearVision and Who Is It For?
What it is: A clear polycarbonate infill roller shutter with aluminium interconnecting extrusions that secures commercial premises while allowing full visibility through the door after hours when the shutter is closed.
Who it is for: Retail shopfronts in shopping centres, food service counters, bar tops, reception areas, shopping arcades, clubs, and any commercial application where security AND after-hours product visibility are both required.
What it costs: Request a free no-obligation quote from ATDC by selecting the green “ADD TO QUOTE” button above or trellisdoors.com.au/contact | 1800 657 435
Delivery: Australia-wide. Three week lead time, although ATDC will always be flexible to meet customers’ reasonable deadlines.
Pricing
The RS7 ClearVision is custom-manufactured to your opening dimensions. Every shutter is measured and cut to size by ATDC tradespeople. Pricing depends on width, height, operation type (manual or motorised), installation type (bracket or pelmet box), and finish.
Average pricing for a basic shopfront shutter is approximately $3,000 to $5,000 (plus GST).
Trade, contractor and volume pricing available. Contact ATDC on 1800 657 435 to discuss commercial project rates.
About the RS7 ClearVision Clear Roller Shutter
The RS7 ClearVision by The Australian Trellis Door Co is a commercial security roller shutter that solves a problem unique to retail: the need to be both physically secure and visually open after hours. Unlike solid roller shutters that block all sight lines, the RS7 combines a full physical barrier when the pelmet box is used — keeping out rain, dust, and vermin resistant— with clear polycarbonate slats that allow customers, security staff, and cameras to see directly into the store at all times.
Trusted by household retail names across Australia, the RS7 ClearVision is one of the most widely specified clear roller shutters for shopping centre shopfronts and streetfront retail tenancies. It is assembled in Australia to ATDC specifications.
RS7 ClearVision In Operation
The video above shows multiple RS7 ClearVision clear roller shutters opening in sequence on a retail shopfront. Each polycarbonate curtain ascends smoothly along the aluminium side guide channels, with the 85mm aluminium bottom rail lifting cleanly from the floor — no bottom track required. The full through-visibility of the clear polycarbonate slats is apparent both when the shutters are closed and as each one opens, allowing an unobstructed view into the store at all times. The motorised operation shown demonstrates the smooth, consistent performance of the Centris electric motor across multiple adjacent shopfront openings.
Full Technical Specifications
| Specification | Detail |
|---|---|
| Curtain Slat Material | Clear polycarbonate (extruded) |
| Slat Height | 100mm tall; 87mm view coverage per slat |
| Joining Slat | Extruded aluminium, 30mm high — forms continuous hinge |
| End Clips | Nylon-moulded, riveted to aluminium slats; locks curtain in guides |
| Max Width — Motorised | 5,500mm (5.5m) in one section |
| Max Width — Manual | 3,000mm (3m), limited to 10m² |
| Unlimited Width | Fixed or removable mullions; angled mullions available for doors meeting at an angle |
| Side Guides — Bracket | 54mm x 32mm extruded aluminium; false back for hidden fixings; felt buffer standard |
| Side Guides — Pelmet Box | 76mm x 32mm extruded aluminium |
| Bottom Rail | 85mm x 17mm extruded aluminium with secure cover; 64mm aluminium Up Stop Foot |
| Locking | Two-way mortice key lock (centre bottom rail or mid-rail); shootbolt slides into both guide channels. Motorised doors not fitted with locks. |
| Mid Rail Option | Locking rail can be positioned at any height for extra strength or easier locking access |
| Roller Drum — Bracket Manual | 229mm diameter seam lock steel tube |
| Roller Drum — Bracket Electric | 229mm diameter spiral welded steel tube |
| Roller Drum — Pelmet Box | 70mm steel tube with 130mm collar inserts |
| Axle | 34.8mm steel axle with enclosed ball bearings |
| Operation — Manual | Counterbalance helical springs; pull pole + flush pull handles |
| Operation — Motorised | 240V electric: Centris side-mounted motor (bracket) or internal dead-lift tube motor (pelmet box) |
| Motor Controls | Standard key switch; options: push button, remote control, battery backup (UPS) |
| Power Outage | Centris motors: safety brake + de-clutching cable for manual operation in emergencies |
| Ventilation Option | Ventilation slots can be punched into polycarbonate slats: 150mm wide x 30mm high @ 50mm spacing. Aluminium infill with ventilation slots also available. |
| Finish | Clear anodised aluminium (standard) or powder coated — Dulux Powder Coat Colour Range (high gloss available) |
| Roll Position | Standard or reversed roll — both available |
| Assembly | Assembled in Australia to ATDC specifications |
| Warranty | 12 months on motors and aluminium slats (maintained per ATDC care guidelines) |
| Security Licence | Master Security Licence No. 408031732 |
Roll Diameters — Bracket Installation
Applicable to bracket installations only. Contact ATDC for pelmet box roll diameter data.
| 1200mm | 1500mm | 1800mm | 2100mm | 2400mm | 2700mm | 3000mm | 3300mm | 3600mm |
|---|---|---|---|---|---|---|---|---|
| 290mm | 300mm | 300mm | 325mm | 330mm | 330mm | 335mm | 340mm | 365mm |
Row 1 = Daylight Height (mm). Row 2 = Roll Diameter (mm). For heights above 3,600mm contact ATDC.
Two Installation Types — Bracket vs. Pelmet Box
| Bracket Installation | Pelmet Box Installation |
|---|---|
| Support from wall or ceiling | Concealed below ceiling — shutter rolls into slimline pelmet box and disappears from view |
| Brackets: 90mm x 40mm mild steel slotted angle | Sheet metal pelmet with die-cast aluminium side frames |
| Side guides: 54mm x 32mm aluminium | Side guides: 76mm x 32mm aluminium |
| Roller drum: 229mm steel tube (manual or electric) | Roller drum: 70mm steel tube with 130mm collar inserts |
| Motor: Centris side-mounted (if motorised) | Motor: internal dead-lift tube motor |
| Best for: standard commercial fit-outs | Best for: premium retail, where the drum is exposed mainly on streetfront applications |
Who the RS7 ClearVision Is For — and Who It May Not Suit
| This product suits… | This may NOT be right if… |
|---|---|
| Retail shopfronts in shopping centres and other commercial applications where product display matters after hours | You need a fully opaque, solid barrier and visibility is not required |
| Food service counters and bar tops | Your opening exceeds 5,500mm and mullions are not suitable |
| Reception areas and shopping arcades | You need maximum security for a high-risk location (consider a heavier-duty product) |
| Any opening up to 5.5m wide (motorised) or 3m (manual) | Budget is the primary driver and through-visibility is not needed (a solid shutter may cost less) |
| Locations needing ventilation (punch-out slot option available) | You need motorised operation but have no 240V power supply available |
| Premises where CCTV and after-hours deterrence are priorities | In cases where there is little available headroom above the opening |
Real-World Use Case Scenarios

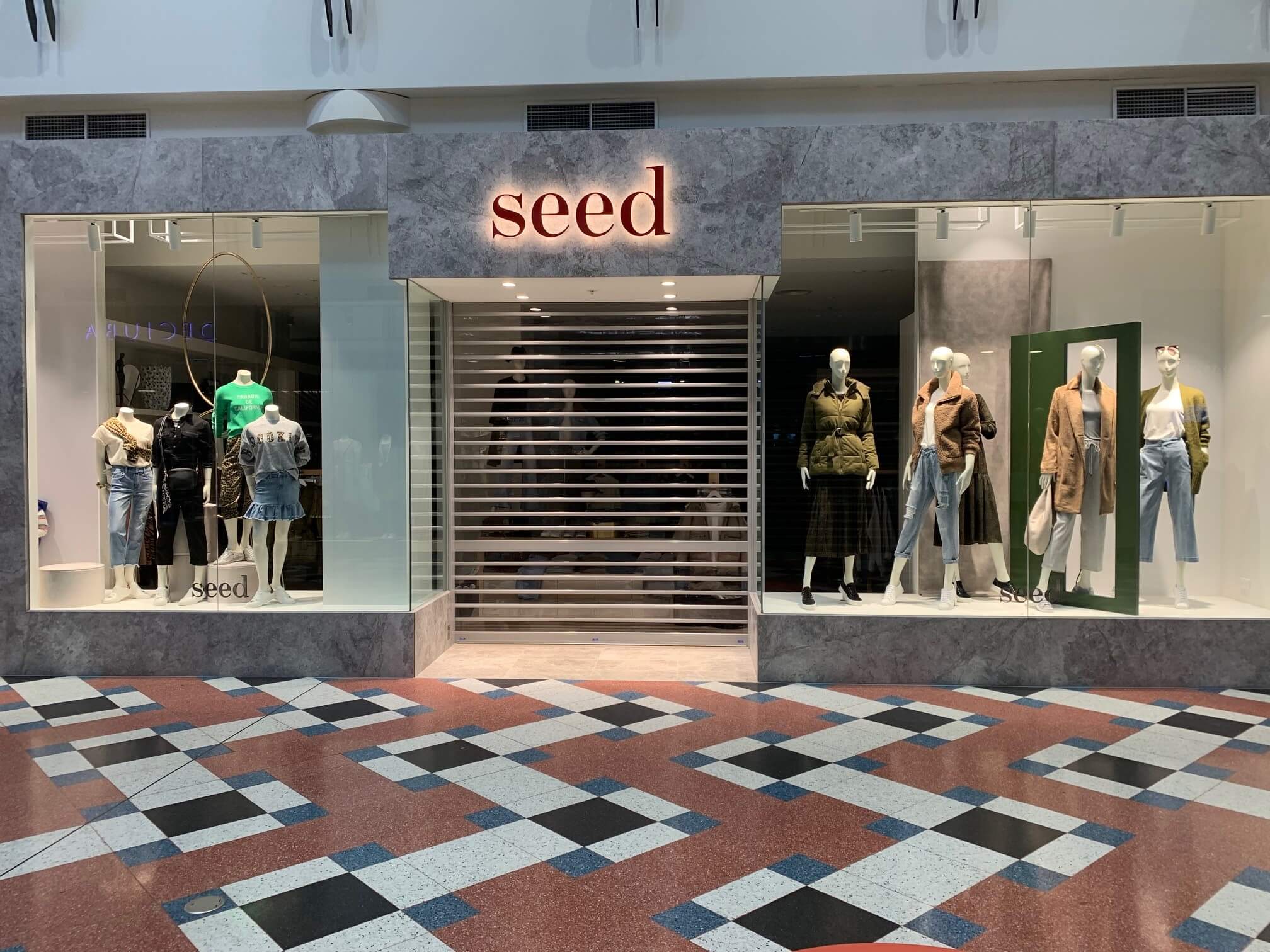

Scenario 1 — Shopping Centre Fashion Retailer: A clothing retailer in a major shopping centre needs to secure their 4-metre shopfront each night without hiding their window display. The RS7 ClearVision motorised shutter closes in seconds via key switch, creates a full physical barrier against rain, dust and intruders, and keeps the merchandise visible to passing shoppers and security staff all night.
Scenario 2 — Food Court Bar Counter: A licensed bar in a shopping centre food court needs to secure a 2.5-metre counter opening at closing time. The RS7 manual shutter with mid-rail locking secures the counter quickly, ventilation slots keep air circulating, and the clear polycarbonate panels allow security patrols to see directly into the service area overnight.
Scenario 3 — Premium Retail Boutique: A high-end retailer wants security hardware that is completely invisible during trading hours. The RS7 with slimline pelmet box installation rolls the entire curtain into a concealed housing above the entrance — customers never see the shutter when the store is open.
RS7 ClearVision vs. Common Alternatives
| Feature | RS7 ClearVision | Solid Roller Shutter | Folding Closure (FC1) |
|---|---|---|---|
| Through-visibility | Full — clear polycarbonate slats | None (unless slots added) | Partial (polycarbonate infill option which is also full vision) |
| Max width (single section) | 5,500mm motorised | 5,500mm motorised | Any width unlimited |
| Bottom track required | No — track-free bottom rail | No | No |
| Concealed installation | Yes — pelmet box is an option or recess in ceiling above | Some models | Yes |
| Ventilation option | Yes — punch-out slots | Yes (can add slots or perforations for vision and/or airflow) | Yes (perforated aluminium) |
| Motorised option | Yes — 240V Centris or tube motor | Yes — 240V electric Centris side-mounted motor | No — manual only |
| Operation | Manual or motorised | Manual or motorised | Manual only |
| Rain/dust/vermin barrier | Yes — full physical barrier when pelmet box is used | Yes — full physical barrier | Partial |
| Warranty | 12 months (motors + slats) | 12 months (motors + slats) | 12 months (motors + slats) |
What Is Included in Supply
- RS7 curtain — custom cut polycarbonate and aluminium slats to your specified width and height
- Side guide channels (bracket: 54mm x 32mm; pelmet box: 76mm x 32mm extruded aluminium)
- Bottom rail — 85mm x 17mm aluminium with secure cover and Up Stop Foot
- Roller drum — appropriate type for your installation (manual or motorised, bracket or pelmet)
- Counterbalance helical springs (manual) or 240V electric motor (motorised)
- Pull pole and flush pull handles (manual operation)
- Two-way mortice key lock with shootbolt (non-motorised installations)
- Pelmet box with die-cast aluminium side frames (if pelmet box installation selected)
Works by Others (Not Included in ATDC Supply):
- Structural preparation of openings
- 240V power supply to motor position (electrician by others)
- Any builder’s work required for pelmet box housing
Optional Extras
- Slimline pelmet box installation — shutter rolls up and disappears from view (most popular premium option)
- Motorised operation — 240V Centris side-mounted motor (bracket) or internal tube motor (pelmet box)
- Remote control activation or key switch
- Push button controller option
- Battery backup / UPS — for continued operation during power outages
- Ventilation slots punched into polycarbonate slats (150mm x 30mm @ 50mm spacing)
- Aluminium infill slats in place of polycarbonate (with or without ventilation slots)
- Powder coating to Dulux Powder Coat Colour Range (high gloss colours available)
- Removable mullions with shoot bolts at base
- Angled mullions for openings where two doors meet at an angle
- Reversed roll position (standard or reversed — both available)
Before You Buy — Checklist
- Measure your opening width and height. Motorised: up to 5,500mm wide. Manual: up to 3,000mm wide (10m² max). Can be measured by ATDC salesperson or technician prior to manufacture.
- Decide on installation type: bracket (wall/ceiling support) or pelmet box (concealed above ceiling).
- Choose operation: manual (pull pole) or motorised (240V). Motorised is recommended for wide or high openings.
- Confirm 240V power supply is available at the motor position if choosing motorised operation.
- Decide on finish: clear anodised (standard) or powder coated to Dulux colour.
- Consider ventilation: if airflow is needed after hours, specify ventilation slots in the polycarbonate slats.
- If your opening exceeds 5,500mm, confirm mullion placement with ATDC before ordering.
- Ensure support structure is adequate — check with ATDC.
Common Mistakes When Buying a Clear Roller Shutter
- Ordering manual operation for a wide opening — manual is limited to 3,000mm wide and 10m². For wider or taller openings, motorised is required.
- Not confirming 240V power availability before ordering motorised operation — this requires an electrician to run power to the motor position before installation.
- Assuming the pelmet box is included as standard — it is an optional extra. Specify it explicitly when requesting a quote.
- Not specifying ventilation slots when the application needs airflow — ventilation is an add-on, not standard on polycarbonate slats.
- Choosing a clear shutter when the priority is maximum opacity security — for high-security applications, a solid shutter may be more appropriate.
- Not taking into account whether there is sufficient headroom for the roller shutter overhead drum.
Technical Limitations — What the RS7 ClearVision Is NOT
- Not suitable for manual operation on spans wider than 3,000mm (3m) or areas exceeding 10m².
- Motorised doors are not fitted with locks — the weight of the shutter and the motor effectively locks the shutter in position when closed.
- Not self-supporting — requires a structural wall, ceiling, or pelmet box for track and drum mounting.
- Requires a 240V power supply for motorised operation (not included in ATDC scope).
- To seal the shutter from the weather on external installations a pelmet box is preferred.
- It does not have a fire rating.
- To comply with BCA egress one requires an emergency green exit button on the internal of the opening, a logic box and a battery back up facility.
Problem → Product → Outcome
| Problem | RS7 Solution | Outcome |
|---|---|---|
| Shopfront security hides product display overnight | Clear polycarbonate slats — full through-visibility | Merchandise visible to passing foot traffic and CCTV |
| Need visibility while keeping out rain, dust, and vermin | RS7 is a full physical barrier when pelmet box is used | Store interior protected while maintaining visibility of merchandise on display |
| Track at the bottom of the entrance creates a trip hazard | No bottom track required | Unimpeded entrance — no trip hazard, no track maintenance |
| Visible shutter housing clashes with premium store fit-out | Optional slimline pelmet box installation or recess overhead drum into ceiling above | Shutter is completely hidden during trading hours |
| Wide opening is too heavy for manual operation | Motorised option — up to 5,500mm in one section | Fast, reliable operation on any commercial-scale opening |
| Power outage leaves motorised shutter inoperable | Centris motor with safety brake + de-clutching cable. Battery back up optional. | Manual emergency operation available during power outages. Battery back up activation. |
Compatibility
| Works With | Does Not Work With (or confirm with ATDC) |
|---|---|
| Openings up to 5,500mm wide (motorised) | Manual operation on spans over 3,000mm or areas over 10m² |
| Wall or ceiling bracket installation | Installations to non-structural supports without builder preparation |
| Below-ceiling pelmet box installation | Motorised operation without 240V power supply on site |
| Dulux Powder Coat Colour Range finishes | Motorised doors with keyed locking (locks not fitted to motorised doors) |
| Centris side-mounted motor (bracket) or tube motor (pelmet box) | No fire rating |
| Fixed or removable mullions for unlimited width spans | Without adequate headroom |
Why Trust ATDC for Your RS7 ClearVision Roller Shutter?
Properly Licensed — Master Security Licence No. 408031732
The Australian Trellis Door Co holds Master Security Licence No. 408031732. This is your assurance that all installation work is compliant with Australian industry standards. You are dealing with a licensed, accountable security company — not an unlicensed contractor.
ATDC also holds a QBCC licence (Queensland Building and Construction Commission) 15029633.
All installation technicians are fully insured and hold industry required White Cards.
Assembled in Australia
Every RS7 ClearVision shutter is assembled in Australia to ATDC specifications. Each unit is custom measured and cut to size by ATDC tradespeople — not mass-produced and shipped from overseas stock.
Expert Recommendation
‘For retail shopfronts where product visibility drives after-hours sales, the RS7 ClearVision is our most specified shutter. In over 40 years, we have not found a better balance of security, visibility, and aesthetics for retail applications.’ — Jonathan Kaplan, Director, The Australian Trellis Door Company
12-Month Warranty
ATDC offers a full 12-month warranty on all motors and aluminium slats used in the construction of the RS7 ClearVision, provided they are maintained in accordance with the ATDC care guidelines. See the warranty page at trellisdoors.com.au for full terms.
Who Should NOT Buy the RS7?
The RS7 ClearVision is the right product for retail and commercial premises where through-visibility is important. If you need maximum opacity, a heavy-duty solid shutter, or a solution primarily driven by cost rather than visibility, there may be a better option in the ATDC range. If your opening exceeds 5,500mm and mullions are not suitable for your application, consult ATDC before ordering.
Get a Free Quote for Your RS7 ClearVision Roller Shutter
Ready to secure your shopfront with clear roller shutters?
ATDC offers free, no-obligation quotes. A knowledgeable salesperson will visit your premises at a time that suits you.
Call 1800 657 435 | trellisdoors.com.au/contact | [email protected]
Where the RS7 ClearVision Is Installed Across Australia
RS7 ClearVision clear roller shutters by The Australian Trellis Door Co are installed in commercial premises across Australia including but not limited to Sydney, Melbourne, Brisbane, Adelaide, Perth, Canberra, Darwin, Hobart, Newcastle, Gold Coast, Sunshine Coast, Townsville, Cairns, Devonport, and more.
Trusted by Major Australian Retailers and Education Facilities

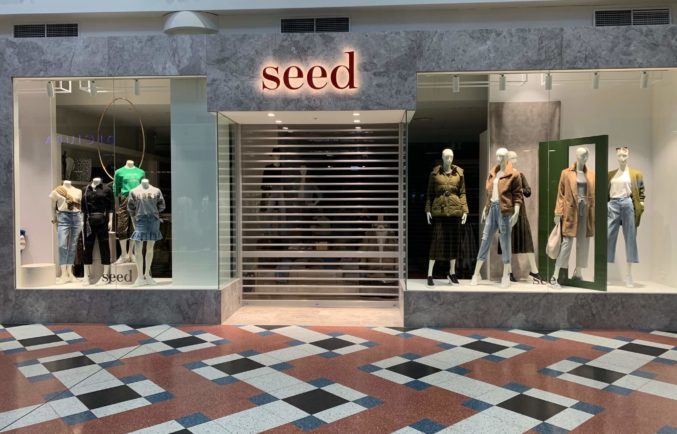

- Seed in Campbell Town Sydney
- Grill’d in Sydney’s Top Ryde shopping centre, and MadMex at Stanhope Gardens, Sydney
- Woolworths Distribution Depot, Yennora

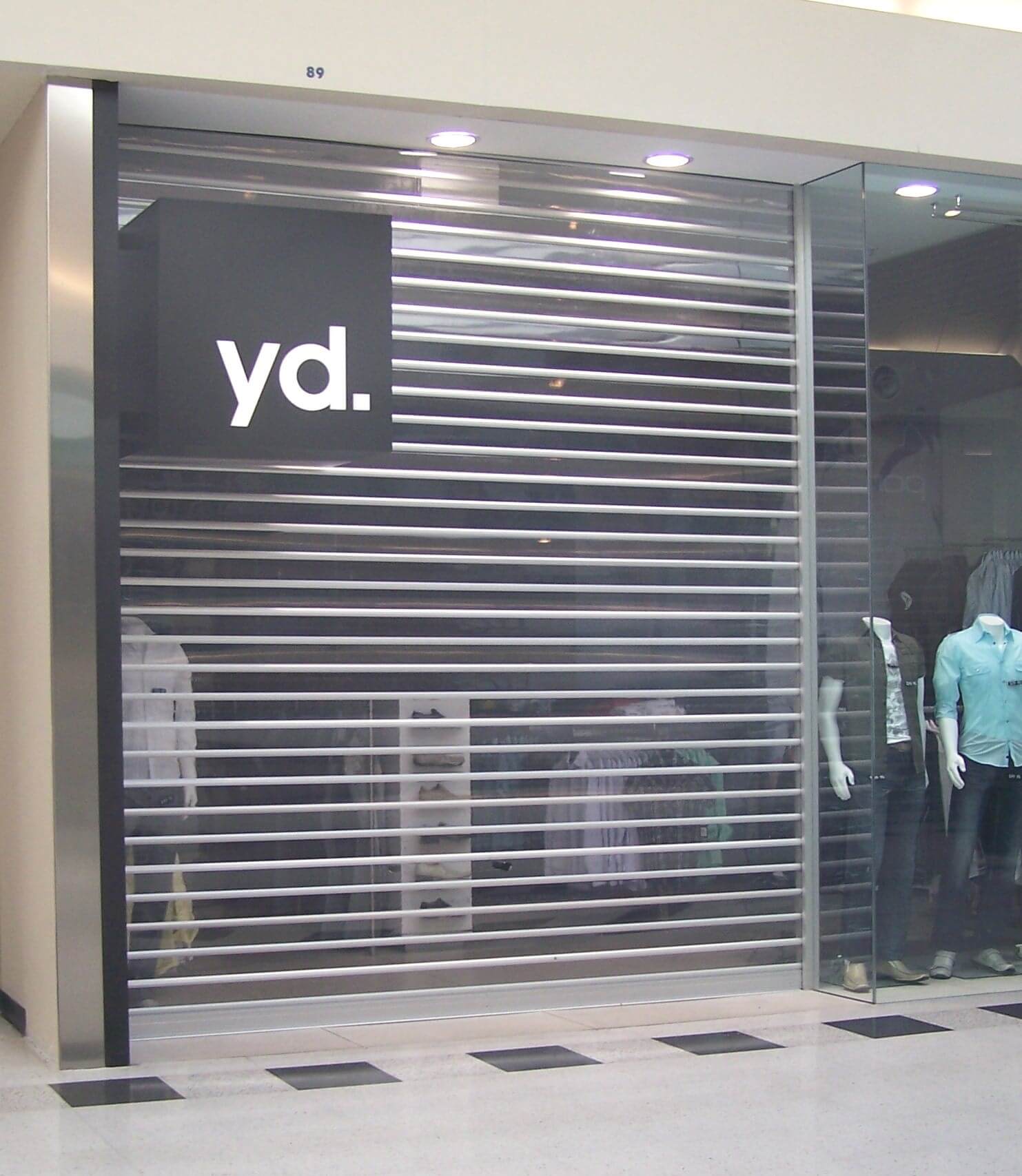

- CTC North Tamworth, Mumlife at Goulburn Street, Sydney and Yd. Westfield Eastgardens
- Terry White Pharmacy in Cleveland, Queensland
- Concordia College Highgate Campus near Adelaide & Sydney Distance Education High School
- Springett’s Arcade, Boral, New South Wales, Southern Highlands
- Rhodes Railway Station Rhodes, NSW
Delivery & Installation Timeframes
| Supply & Delivery | Approximately 3 weeks of manufacturing time, although ATDC will always do their best to expedite delivery to meet handover requirements on any specific job |
|---|---|
| Installation | ATDC installation available across all Australian states and territories |
| Free Quote Visit | ATDC salesperson visits your premises at a time that suits you |
| Shipping Area | Australia-wide — all states and territories, including regional areas |
| Rush Orders | Expedited delivery is something ATDC will always try to accommodate to meet the handover deadlines on any specific job |
Warranty & Returns
| Motors | 12 months warranty |
|---|---|
| Aluminium Slats | 12 months warranty |
| Condition | Maintained in accordance with ATDC care guidelines — see warranty page |
| Returns Policy | Refer ATDC trading terms and conditions. Also Defects, Warranties and Returns, Competition and Consumer Act 2010 (CCA) |
Related Products & Resources
- Slotted aluminium roller shutters
- High strength aluminium roller security grille
- Aluminium security roller grille counter shutter
- Aluminium folding closures for shopfronts
- Commercial roller shutter for a shopping centre tenancy
Seasonal & Timely Context
There is an elevated demand before both the Easter and Christmas holidays. It is always recommended that customers try to place their orders 4 weeks in advance of these dates to ensure your new RS7 ClearVision is installed and operational before your peak trade period.
Common Questions About the RS7 ClearVision Clear Roller Shutter
1. How much does an RS7 ClearVision roller shutter cost?
RS7 ClearVision shutters have an average pricing for a basic shopfront shutter of approximately $3,000 to $5,000 (plus GST) but the price can vary depending on width, height, operation type, and finish. Motorised systems are priced higher than manual systems. Pelmet box installation is an optional extra. Also there are many additional optional extras for motorised roller shutters. Request a free no-obligation quote from ATDC at trellisdoors.com.au/contact or call 1800 657 435.
2. What is the maximum size for an RS7 ClearVision roller shutter?
The RS7 ClearVision can span up to 5,500mm (5.5 metres) wide in a single motorised section. For manual operation, the maximum is 3,000mm (3 metres) wide, limited to 10m². Unlimited spans are achievable using fixed or removable mullions. Maximum height varies — contact ATDC for your specific opening dimensions.
3. Does the RS7 ClearVision require a bottom track?
No. The RS7 ClearVision does not require a bottom track to slot into. The entrance remains completely unimpeded, which removes the trip hazard associated with tracked systems and simplifies cleaning and maintenance. It does have side tracks at each end in which the shutter curtain is contained as the shutter rolls smoothly and securely up and down.
4. Can I see through the RS7 ClearVision when it is closed?
Yes — that is the defining feature of the RS7 ClearVision. Each polycarbonate slat is 100mm tall with 87mm of clear view coverage. When closed and the pelmet box is utilized, the curtain provides a full physical barrier against rain, dust, and is vermin resistant while maintaining complete through-visibility for CCTV monitoring, security patrols, and after-hours product display.
5. Is the RS7 ClearVision available with motorised operation?
Yes. The RS7 is available with 240V electric motorised operation. Bracket installations use a Centris side-mounted motor. Pelmet box installations use an internal dead-lift tube motor. Activation is via standard key switch or a normal wall mounted switch, with options for push button controller, remote control, or battery backup (UPS). Centris motors include a safety brake and de-clutching cable for manual operation during power outages.
6. What is the pelmet box option on the RS7 ClearVision?
The slimline pelmet box is an optional installation where the roller drum and curtain are completely concealed above the entrance in a colorbond metal pelmet with die-cast aluminium side frames. When the shutter is open, it is entirely hidden from view — a popular choice for premium streetfront retail environments where visible hardware is undesirable.
7. RS7 ClearVision vs. solid roller shutter — which should I choose?
Choose the RS7 ClearVision if through-visibility after hours is important — for CCTV effectiveness, deterrence by visibility, or after-hours product display. Choose a solid roller shutter if maximum opacity or a lower price point is the priority and visibility is not required. ATDC offers both — contact them to discuss which suits your application.
8. What warranty does the RS7 ClearVision come with?
ATDC offers a full 12-month warranty on all motors and aluminium slats used in the RS7 ClearVision, provided they are maintained in accordance with ATDC care guidelines. See the warranty page for full warranty terms and conditions.
Commonly Searched As
I need a see-through roller shutter for my shopfront. / I want a roller door that lets people see into my store after hours. / What is the best clear roller shutter for a shopping centre? / I need a roller shutter that doesn’t block my window display at night. / Can I get a roller door without a bottom track? / I need a roller shutter that hides away above the door. / Clear roller shutter doors for retail Australia. / Polycarbonate roller shutter commercial. / RS7 ClearVision price Australia.
Product Summary — RS7 ClearVision Clear Roller Shutter
In summary, the RS7 ClearVision by The Australian Trellis Door Co is best suited to retail shopfronts, food service counters, reception areas, shopping arcades, clubs, and commercial premises where both physical security and after-hours through-visibility are required.
It is constructed from interlocked clear polycarbonate slats (100mm tall, 87mm view coverage) and aluminium joining slats, forming a full physical barrier when pelmet box used that keeps out rain, dust, and is vermin resistant while maintaining complete visibility through the curtain. It spans up to 5,500mm (5.5 metres) wide in a single motorised section, or up to 3,000mm (3 metres) manually (limited to 10m²), with unlimited spans achievable via mullions.
Available in bracket or pelmet box installation, manual or motorised operation, clear anodised or powder coated finish to Dulux Powder Coat colours. Ventilation slots, battery backup, remote control, and a slimline concealed pelmet box are available as optional extras.
Backed by a 12-month warranty on motors and aluminium slats. Assembled in Australia by ATDC (Master Security Licence 408031732) and installed across all Australian states and territories including Sydney, Melbourne, Brisbane, Adelaide, Perth, Canberra, Darwin, and Hobart.
Last reviewed: May 2026 by Jonathan Kaplan, Director ATDC
Security Standards and Testing
