Last Updated: April 2026
GENERAL
The Australian Trellis Door Company (ATDC) has installed its Roller Shutters at Bundha Sports Centre, Australia’s first multi-level community indoor sports facility which is adjacent to the Wurun Senior Campus at North Fitzroy near Melbourne.
The facility was purpose built for Development Victoria. Project managers and builders were Built Environs (head officed in Adelaide) whilst the architects for the project were Co-Op Studio.
ROLLER SHUTTER DESIGN SPECIFICATIONS
Ten (10) electric operated series 2 roller shutters https://trellisdoors-stg.mydev.au/product/commercial-security/roller-shutters/roller-doors-series-2-security-shutters were installed by The Australian Trellis Door Company (ATDC) to secure different areas of the facility
The curtains on these roller shutters consist of a combination of solid extruded aluminium slat infills as well as slotted sections with a perforated mesh infill to permit airflow. Key switches were installed to limit access control and increase security to the premises.
The maximum possible span for these roller shutters is 5500mm in one section if motorized. The roller drum is manufactured from a heavy duty 229mm steel tube which is either seam lock or spiral welded. For electric operation 240V electric actuators are utilized.
On this particular project a number of special access control features were provided for these roller shutters including digital card swipe facilities with protective Photo Electric beams. The shutters were also wired to the customer’s emergency fire protection system.
WARRANTY
The Australian Trellis Door Company offers a 12-month warranty against defective materials and workmanship.
PROJECT WORK

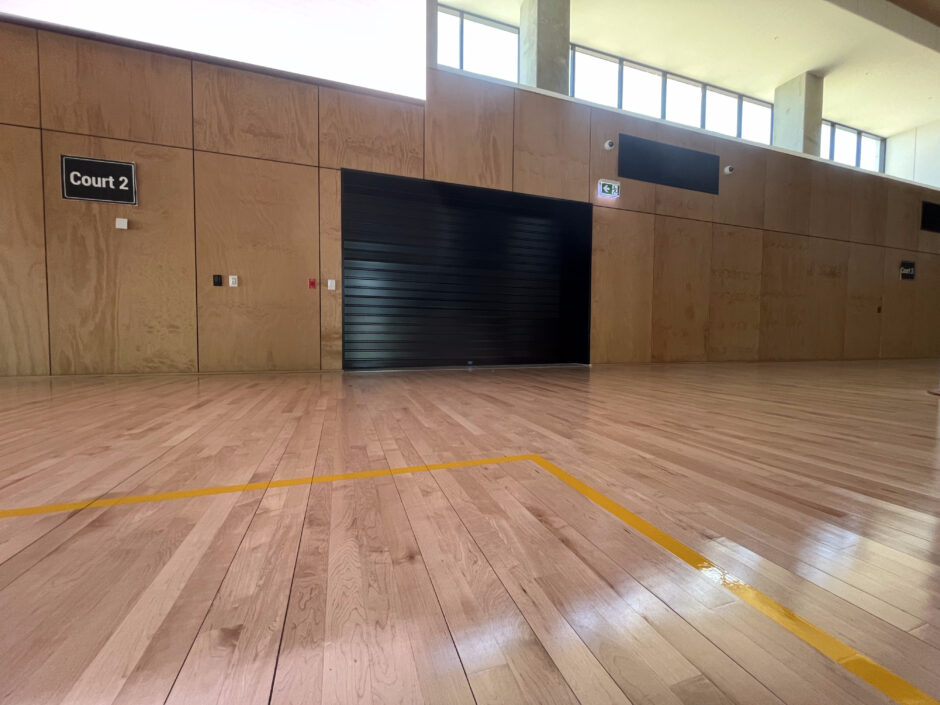

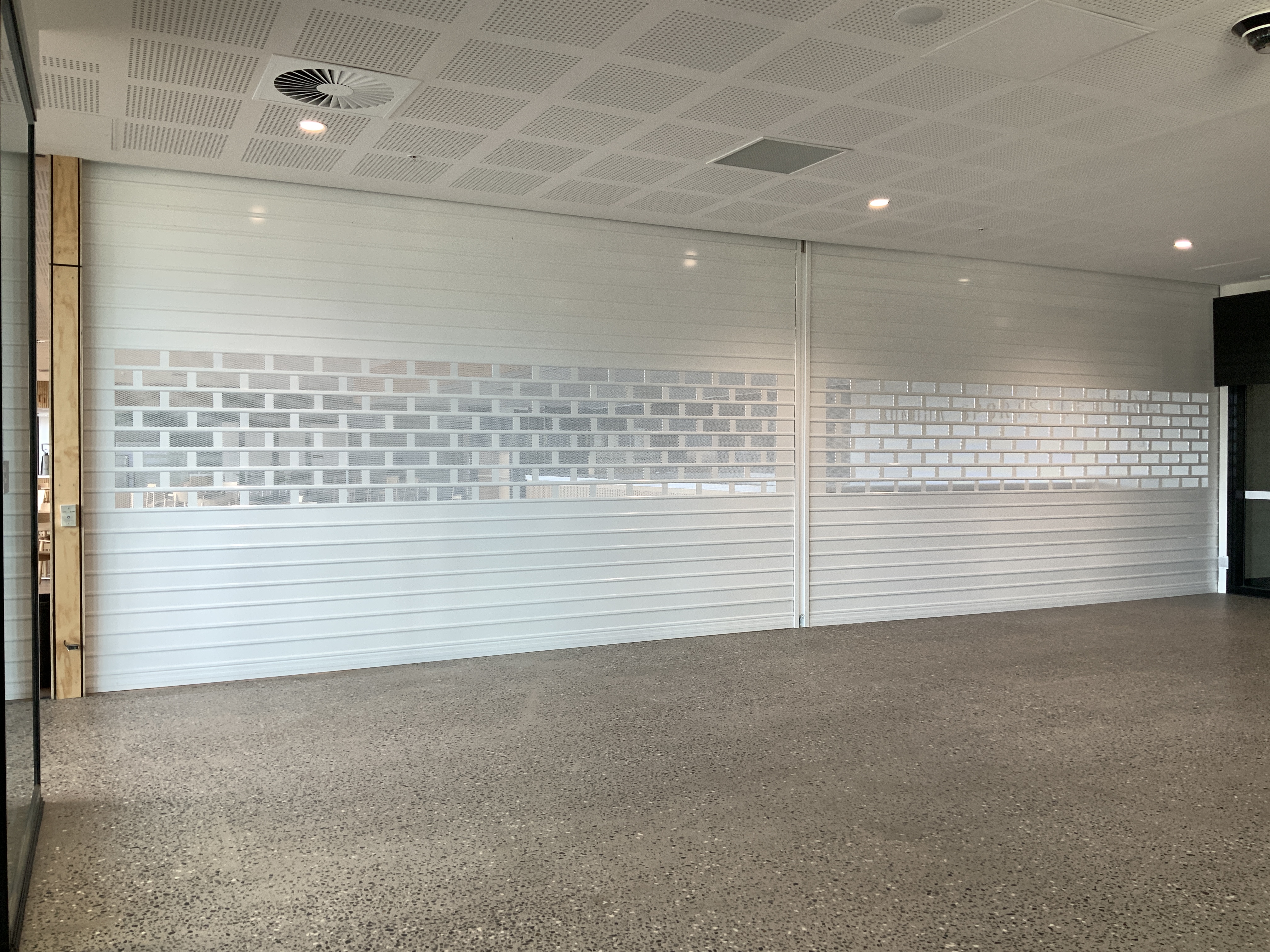

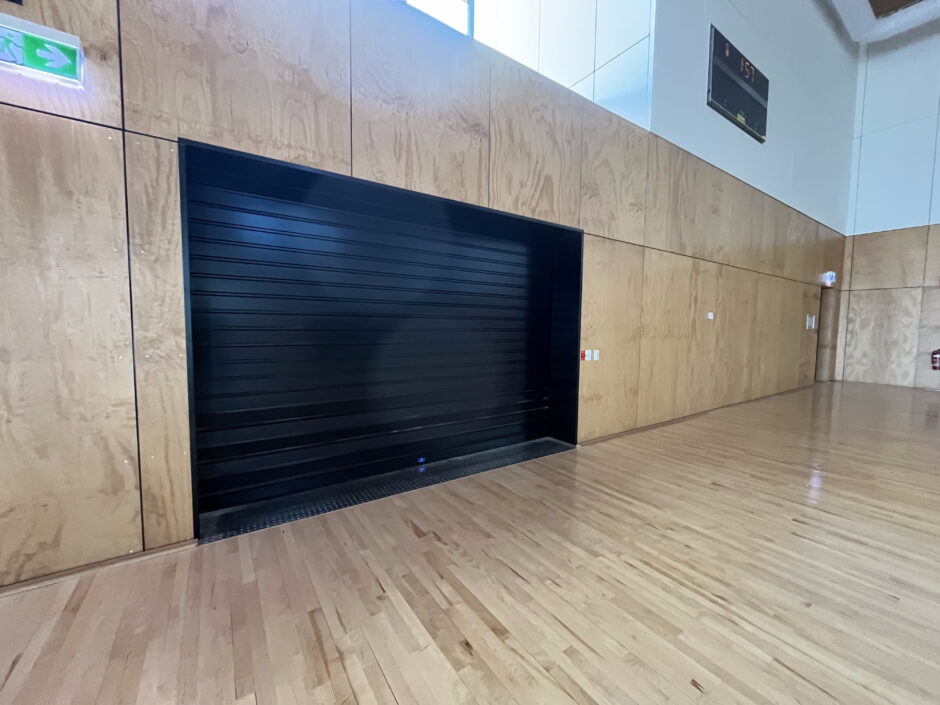

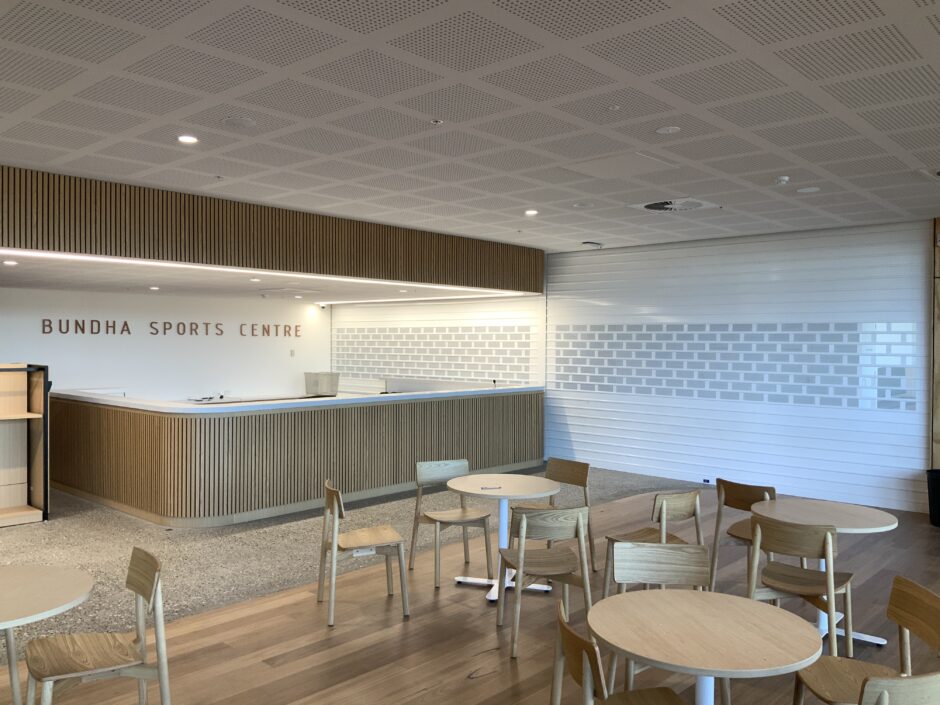

Project specific photographs are attached above for viewing.
CONTACT US
The Australian Trellis Door Co (ATDC) has been operating successfully for 40 years, is family-owned, with national representation. The company is fully licensed and insured to operate, and all our technicians are fully licensed.
See our full range of roller grilles and roller shutters or contact us toll free from anywhere in Australia on 1800 657 435 or email [email protected]
NSW Master Security License: 410452552
QBCC QLD License number :15029633
Roller shutters secure valuable equipment, courts, and spaces after hours while allowing flexible operation during community and school hours. They protect against unauthorised access in the shared-use facility integrated with Wurun Senior Campus.
Yes, The Australian Trellis Door Co can provide special access control features for roller shutters, including digital card swipe facilities
Yes, The Australian Trellis Door Co can provide shutters that can be wired to the customer’s emergency fire protection system.
Security Standards and Testing
